BoilerBlast Through-feed machine
Efficient Internal Blasting for Boilers, Vessels, and Tanks
The BoilerBlast series is a fully automatic internal blasting system designed to deliver high productivity and exceptional cleaning results for boilers, vessels, and tanks. With its robust construction and advanced control systems, the BoilerBlast series ensures efficient and consistent internal surface preparation, making it ideal for a wide range of industrial applications.
 |
|
|
|
|
|
Heavy-duty Blasting
Designed for robust, long-lasting use |
Precision Cleaning
Ensures thorough cleaning of all internal surfaces. |
Automated Operation
Fully automatic system for consistent results |
Energy Efficient
Optimized for low energy consumption. |
Media Recovery and Filtration
Ensures sustainable operation and reduced waste |
For the highest capacities, we produce THROUGH-FEED sandblasting machines capable of processing 40-120 boilers per hour, with even higher capacities available upon request. These through-feed boiler blasting machines are specifically designed for fully automatic, high productivity in-line blasting of boilers, vessels, or tanks with a single opening from the downside.
These advanced machines can handle up to 120 boilers per hour (50-80 litres) and work in synchronization with a hanging conveyor. They represent the pinnacle of automation and require only one operator. The system can blast up to 4 boilers in a single phase, encompassing a three-phase blasting process: blasting up, blasting down, and blow-off.
Equipped with an automatic abrasive reclaim system and dust filtration, these machines operate in full synchronization with hanging conveyors. They receive data for self-adjustment and can be equipped with detection stations for height adjustments and other detection systems, ensuring higher productivity and reliability.
Benefits of BoilerBlast Machine
- many different automatic functions
- sliding doors opening/closing as per input signals
- abrasive collection and transportation/elevation
- cleaning of abrasive and filling of the silo
- automatic filling and pressurization of the pressure vessel
- air suction and filtration
|
Models
|

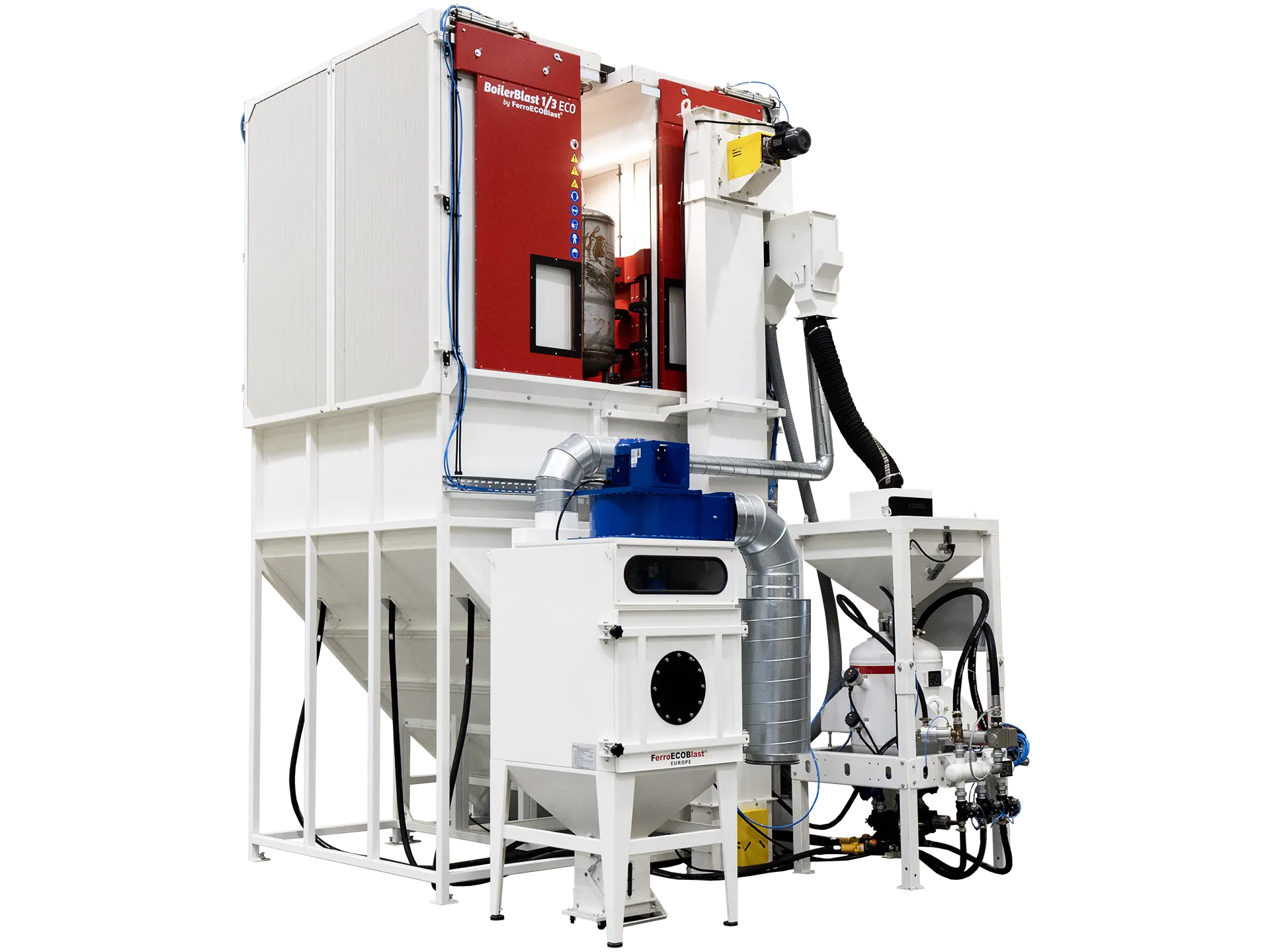

BoilerBlast 1/3 ECO
|

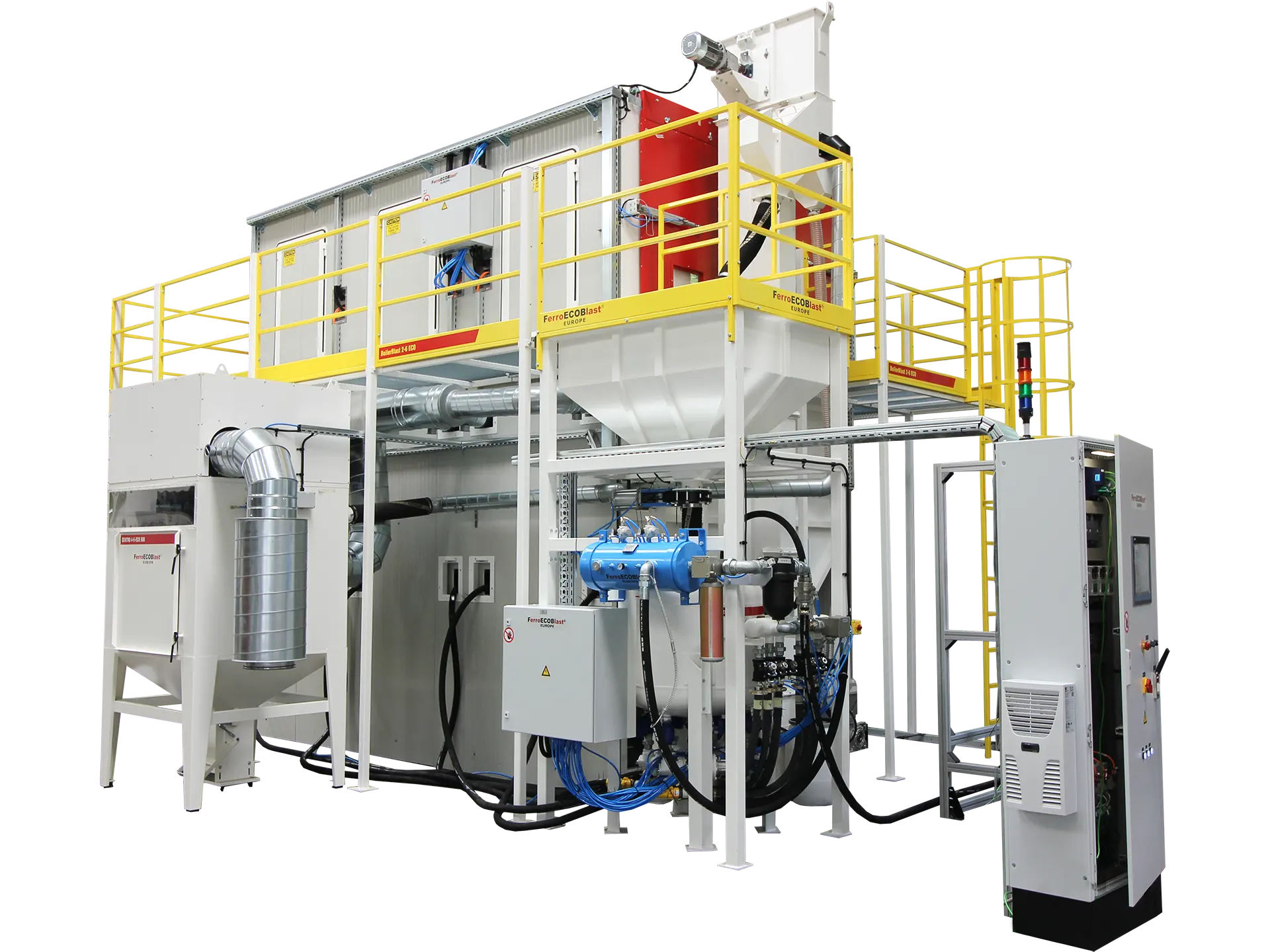

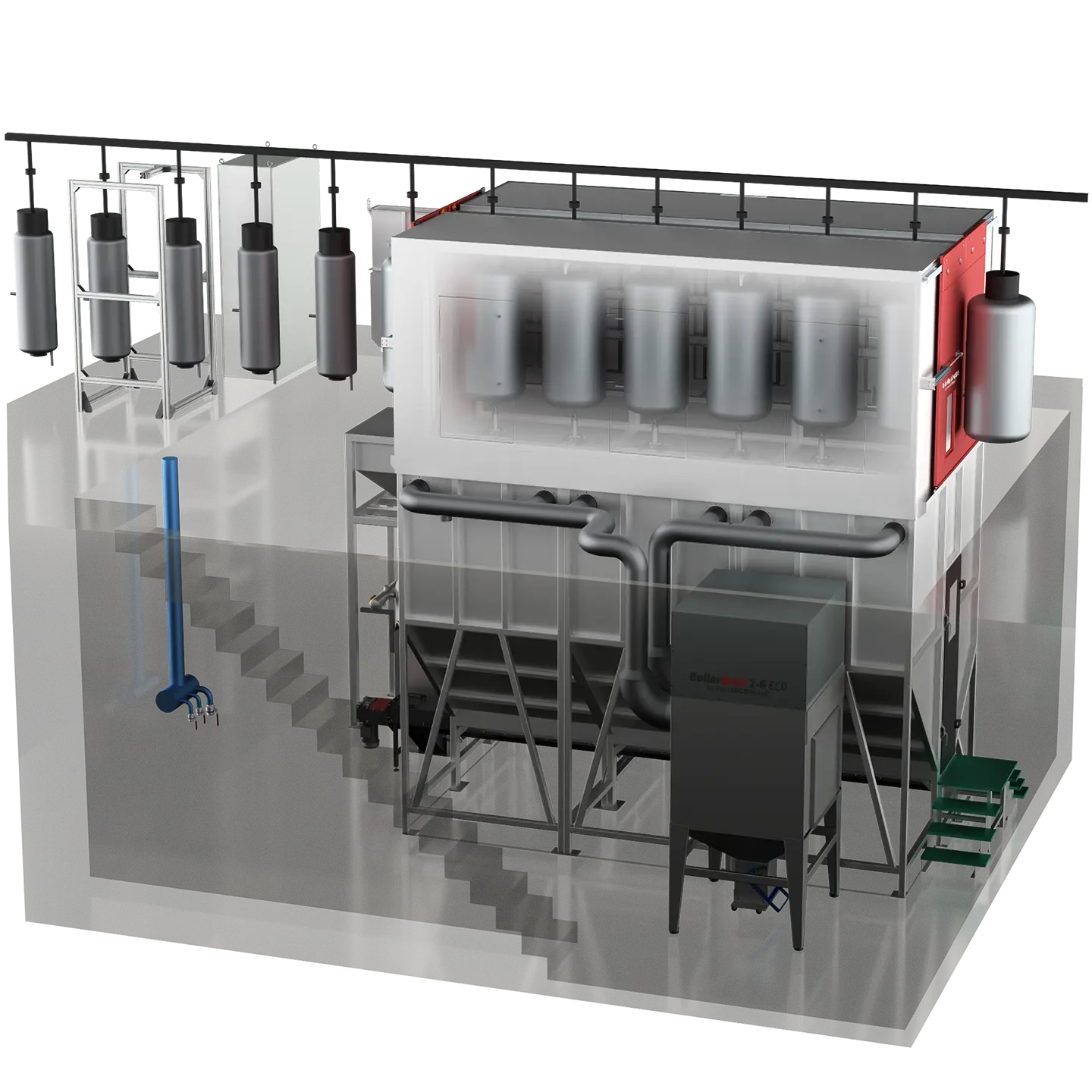

BoilerBlast 2/6 ECO
|

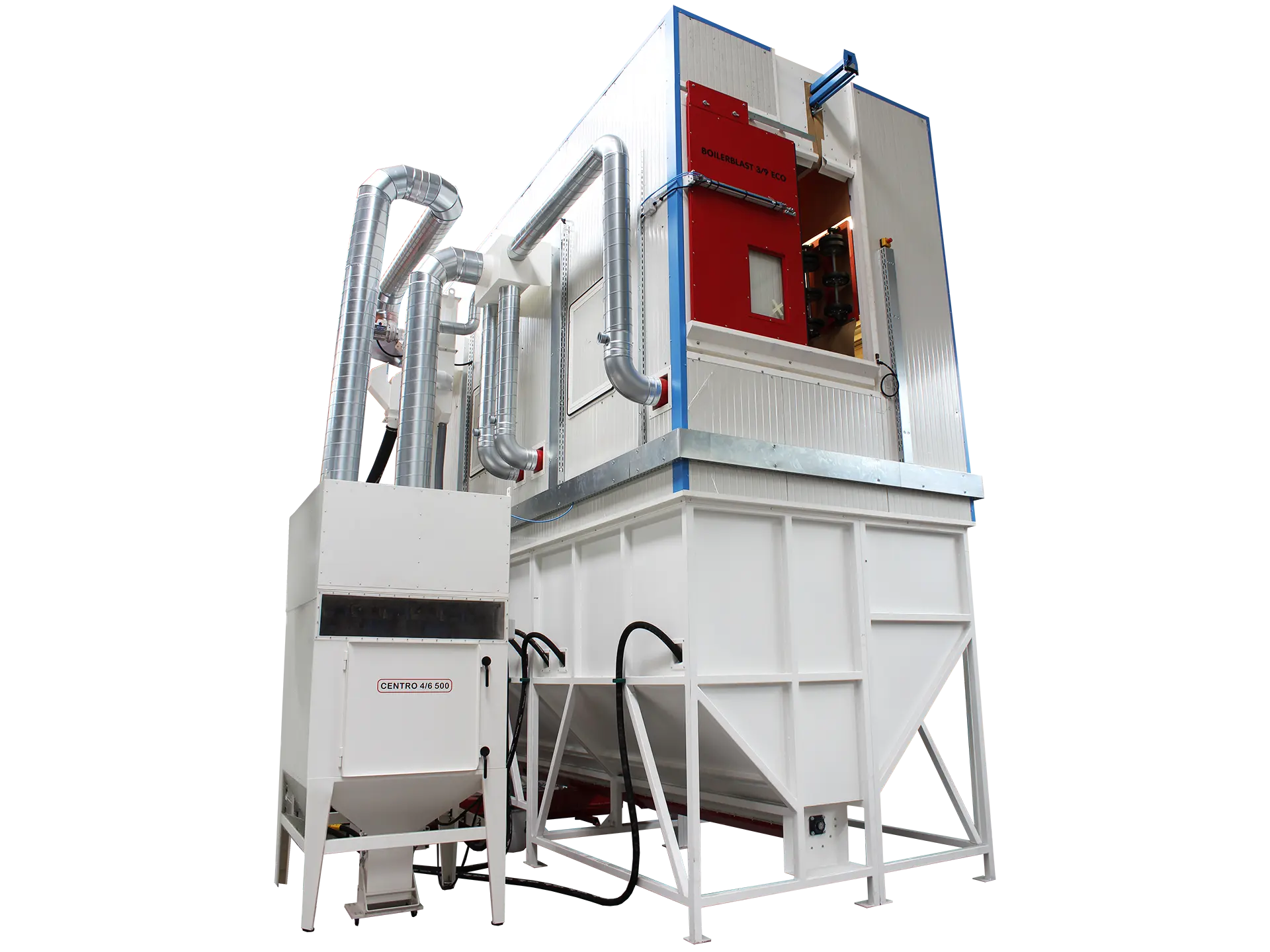

BoilerBlast 3/9 ECO
|
| Picture |  |
 |
 |
| Volume Capacity:* | 80 - 500 liters* | 80 - 300 liters* | 12,5 - 40 liters* |
| Boiler Dimensions:* | Min. Ø 250 mm, L 500 mm | Max. Ø 650 mm, L 1800 mm* | Min. Ø 404 mm, L 400 mm | Max. Ø 550 mm, L 580 mm* | Min. Ø 220 mm, L 300 mm | Max. Ø 220 mm, L 1500 mm* |
| Max Weight of Boiler:* | 64 kg* | 100 kg* | 12 kg* |
| Processing Rate:* | ~ up to 12 boilers / 1 hour | ~ up to 48 boilers / 1 hour | ~ up to 120 boilers / 1 hour |
| Working Cycle:* | ~ 300s; one boiler in tact | ~ 150s; two boilers in tact | ~ 90s; three boilers in tact |
| Power Supply:* | 380 V / 50 Hz; 11.5 Kw | 380 V / 50 Hz; 15 Kw | 380 V / 50 Hz; 15 Kw |
| Compressed air:* | 12 Nm³/min; @6,0 Bar | 25 Nm³/min; @6,0 Bar | 25 Nm³/min; @6,0 Bar |
| Video Presentation |
|
* Please note: This is a sample specification. Each machine is custom-made, so the data may vary based on specific requirements and purposes.
Other Products
Automatic Single BoilerBlasting
Automatic off-line solution for internal sandblasting of large and heavy boilers one at a time
BoilerBlast Orbital machine
Operator-loaded offline solution from exterior station for various sizes with 1 or 2 boiler treatment in each phase.

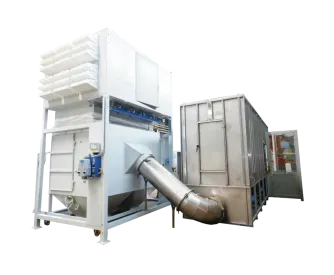

Powder Enameling Spray Booths
