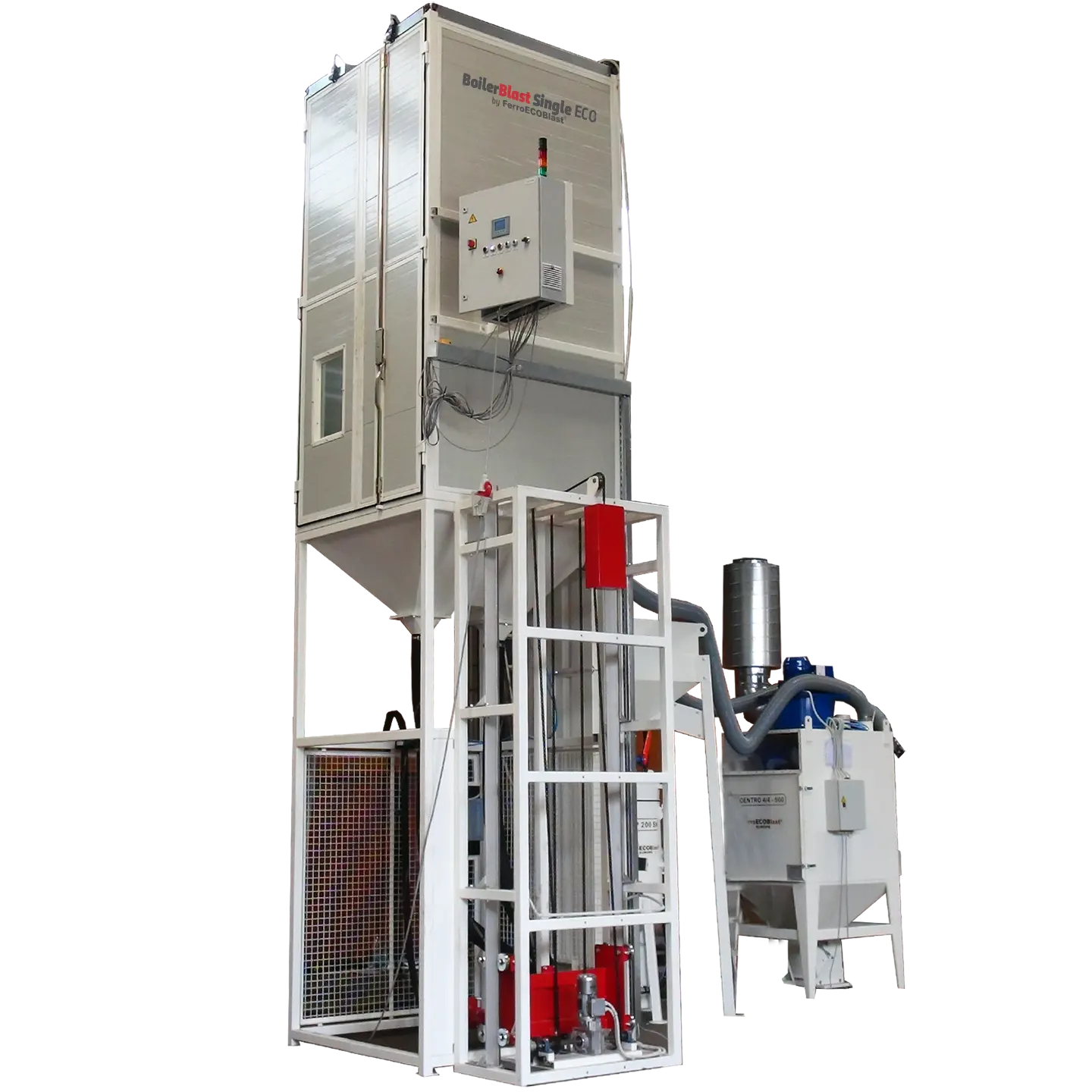

Automatic Single BoilerBlasting
Automatic Internal abrasive blasting for large Boilers, Vessels, and Tanks
The BoilerBlast single machine ensures thorough surface preparation with minimal manual intervention, making it an ideal solution for industries demanding high-quality surface treatment.
 |
|
|
|
|
|
Boost productivity
Processes up to 10 boilers per hour |
Handles Various Sizes
Suitable for boilers of different sizes and shapes |
Precision Control
PLC-controlled system with user-friendly interface |
Enhanced Safety
Built-in safety features and automatic stop mechanisms |
Media Recovery and Filtration
Ensures sustainable operation and reduced waste |
The machine operates with one working station equipped with a vertical sliding blasting nozzle. The nozzle travels up and down, blasting the interior surfaces of the boilers under a pre-set program. This ensures comprehensive coverage and thorough cleaning, removing all residues and impurities from the boilers.

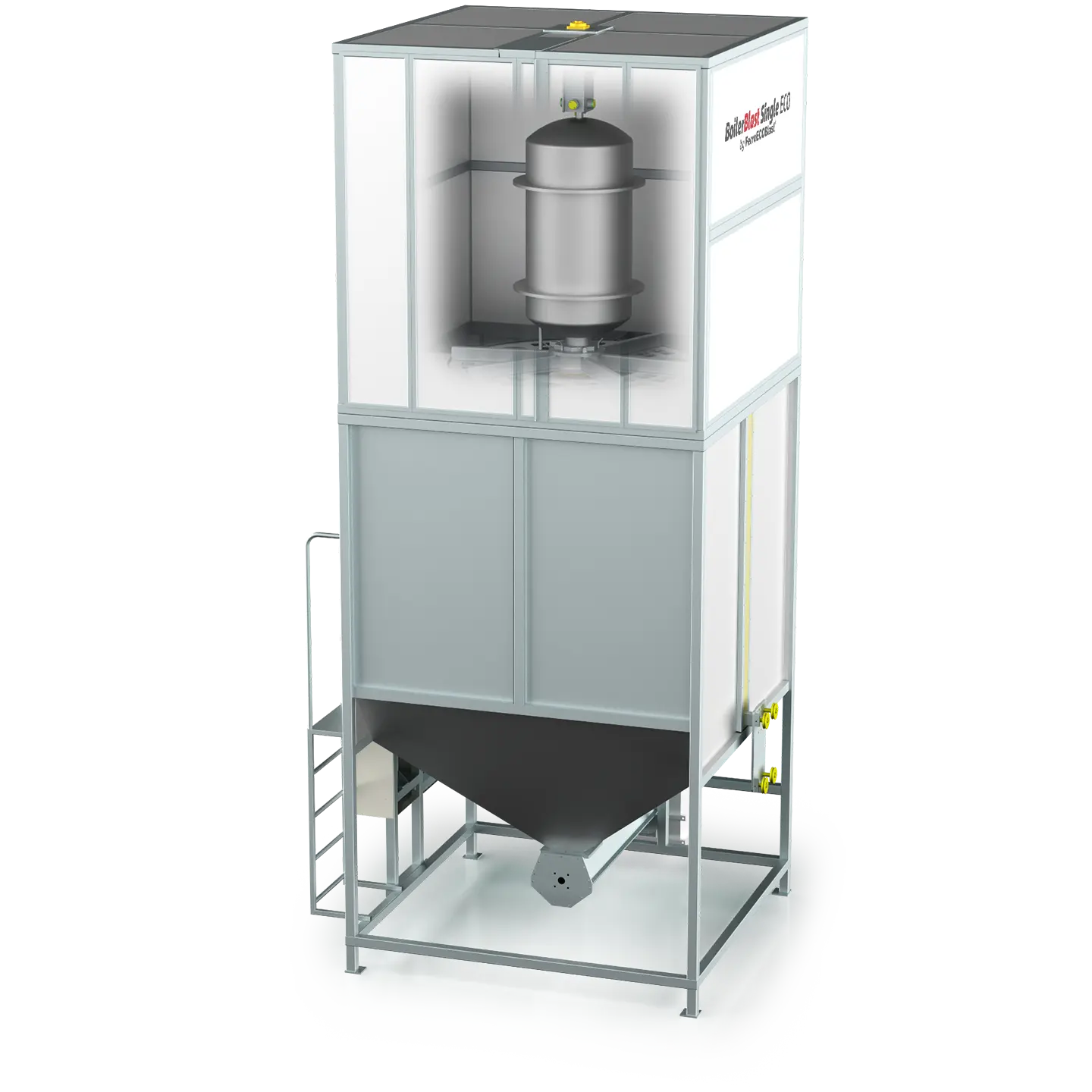

Boilers are manually loaded onto a rotating nest within the cabinet. The nest ensures that the boilers are centered and secured during the blasting process. The vertical movement of the nozzle, combined with the rotation of the boilers, guarantees uniform and consistent blasting results, meeting high-quality surface preparation standards.
A key feature of the BoilerBlast Single ECO is its efficient abrasive recovery system. This system continuously collects, separates, and recycles the blasting media, ensuring that only clean and effective abrasive is used during the process. This not only reduces the consumption of abrasive materials but also minimizes waste and operational costs. The recovery system is seamlessly integrated into the machine’s design, providing automatic operation throughout the blasting process.
Technical specifications (example) - BoilerBlast Single ECO
| Dimensions (L x W x H): 2600 mm x 1200 mm + Electro-box, Filter unit x 3800 mm (-1500 mm in basement pit) |
| Volume Capacity: 110 – 500 liters |
| Boiler Dimensions: Min. Ø 400 mm, L 1.050 mm | Max. Ø 450 mm, L 2.950 mm |
| Max Weight of Boiler: 60 kg |
| Processing Rate: ~ 10 boilers per hour (depending on boiler type)
|
| Power Supply: 380 V / 50 Hz; 10 kW
|
| Compressed Air: 5 Nm³/min; 6.0 Bar
|
* Please note: This is a sample specification. Each machine is custom-made, so the data may vary based on specific requirements and purposes.
