Semi-automatic BoilerBlast machine
Semi-automatic Inside sandblasing for Boilers, Vessels, and Tanks
The BoilerBlast 4 ECO is a sandblasting machine designed for the efficient and thorough inside blasting of boilers, vessels, and tanks. This semi-automatic machine offers exceptional performance with manual loading and unloading, ensuring consistent and reliable surface preparation.
 |
|
|
|
|
|
Boost productivity
Processes up to 120 boilers per hour |
Handles Various Sizes
Suitable for boilers of different sizes and shapes |
Precision Control
PLC-controlled system with user-friendly interface |
Enhanced Safety
Built-in safety features and automatic stop mechanisms |
Media Recovery and Filtration
Ensures sustainable operation and reduced waste |
The BoilerBlast 4 ECO features a robust and durable construction, designed to withstand the rigors of continuous industrial use. The machine's cabinet is made from high-quality steel profiles, ensuring stability and longevity. The entire cabinet is powder-coated to provide resistance against corrosion and wear, enhancing the machine's lifespan.

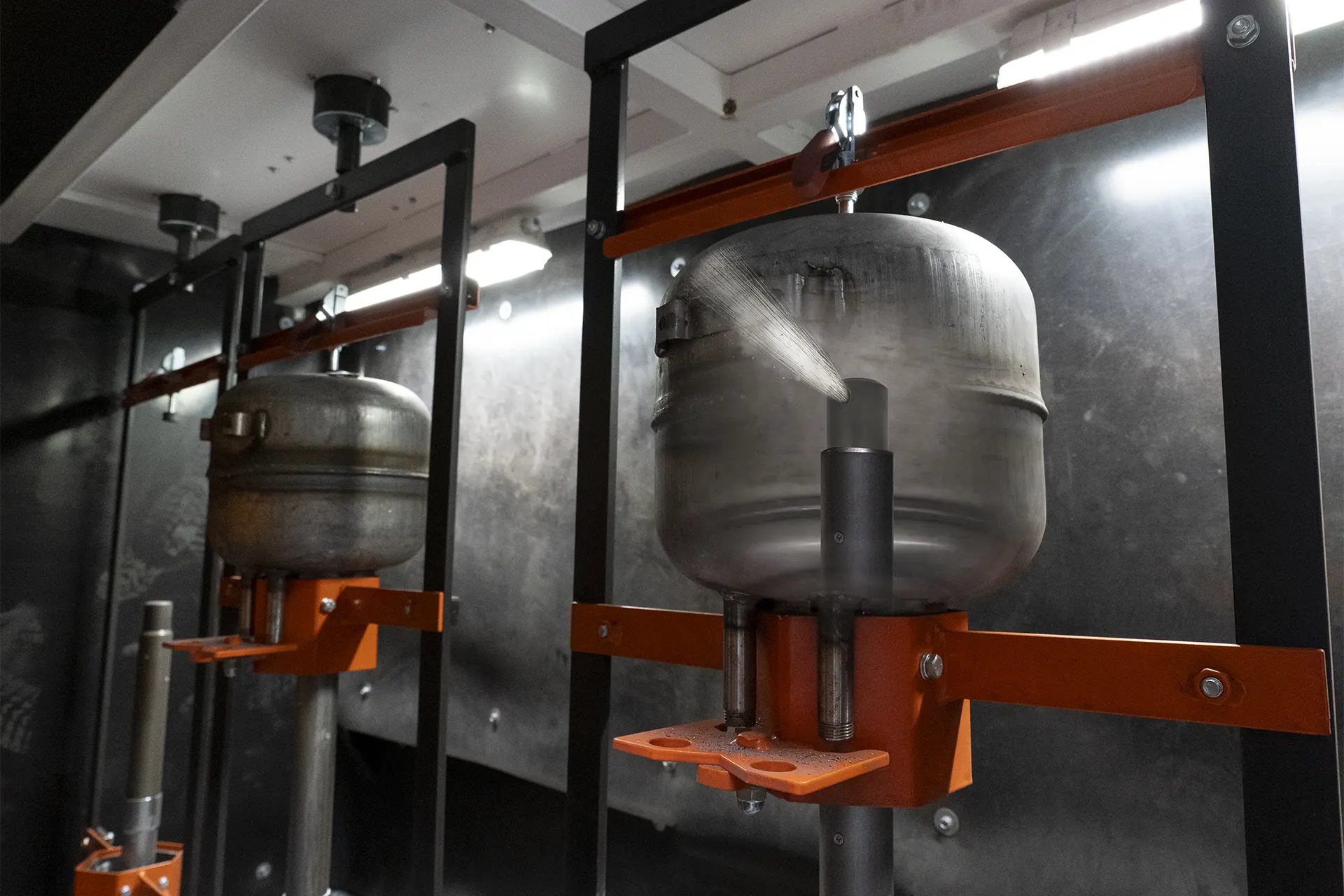

Inside the cabinet, there are four dedicated working stations, each equipped with a vertical sliding mechanism. These mechanisms enable precise vertical movement of the blasting lances, ensuring comprehensive coverage of the boiler's interior surfaces. The lances, fitted with specially designed nozzles, perform the blasting in all directions according to a pre-set program. This ensures thorough cleaning and surface preparation, eliminating any residues and impurities from the boilers.
Boilers are manually loaded onto rotating hooks located inside the cabinet. These hooks are designed to rotate during the blasting process, ensuring that every part of the boiler's interior is exposed to the blasting media. The rotation, combined with the vertical movement of the lances, guarantees a uniform and consistent blasting effect, meeting high-quality surface preparation standards.
Technical specifications (example) - BoilerBlast 4 ECO
| Dimensions (L x W x H): 2600 mm x 1200 mm + Electro-box, Filter unit x 3800 mm (-1500 mm in basement pit) |
| Volume Capacity: 5 – 50 liters |
| Boiler Dimensions: Min. Ø 260 mm, L 263 mm | Max. Ø 380 mm, L 580 mm |
| Max Weight of Boiler: 15 kg |
| Processing Rate: ~ 120 boilers per hour (25-liter volume)
|
| Working Cycle: ~ 120s per cycle
|
| Power Supply: 380 V / 50 Hz; 11.5 kW
|
| Compressed Air: 12-15 Nm³/min; 6.0 – 8.5 Bar
|
* Please note: This is a sample specification. Each machine is custom-made, so the data may vary based on specific requirements and purposes.
