Blastomat System - Automatic Sandblasting
Advanced Sandblasting for Effective Surface Cleaning in Industrial Applications
Engineered for heavy-duty performance across diverse sectors such as foundries, plastics, and glass, the Blastomat 15-14 HD enhances surface treatment processes with its dual turntable design and advanced media recycling. This system is designed to deliver high productivity through continuous operation and meticulous control over the blasting environment.
 |
 |
 |
 |
 |
|
Dual Motorized Turntables
Simultaneous loading and blasting for uninterrupted operations |

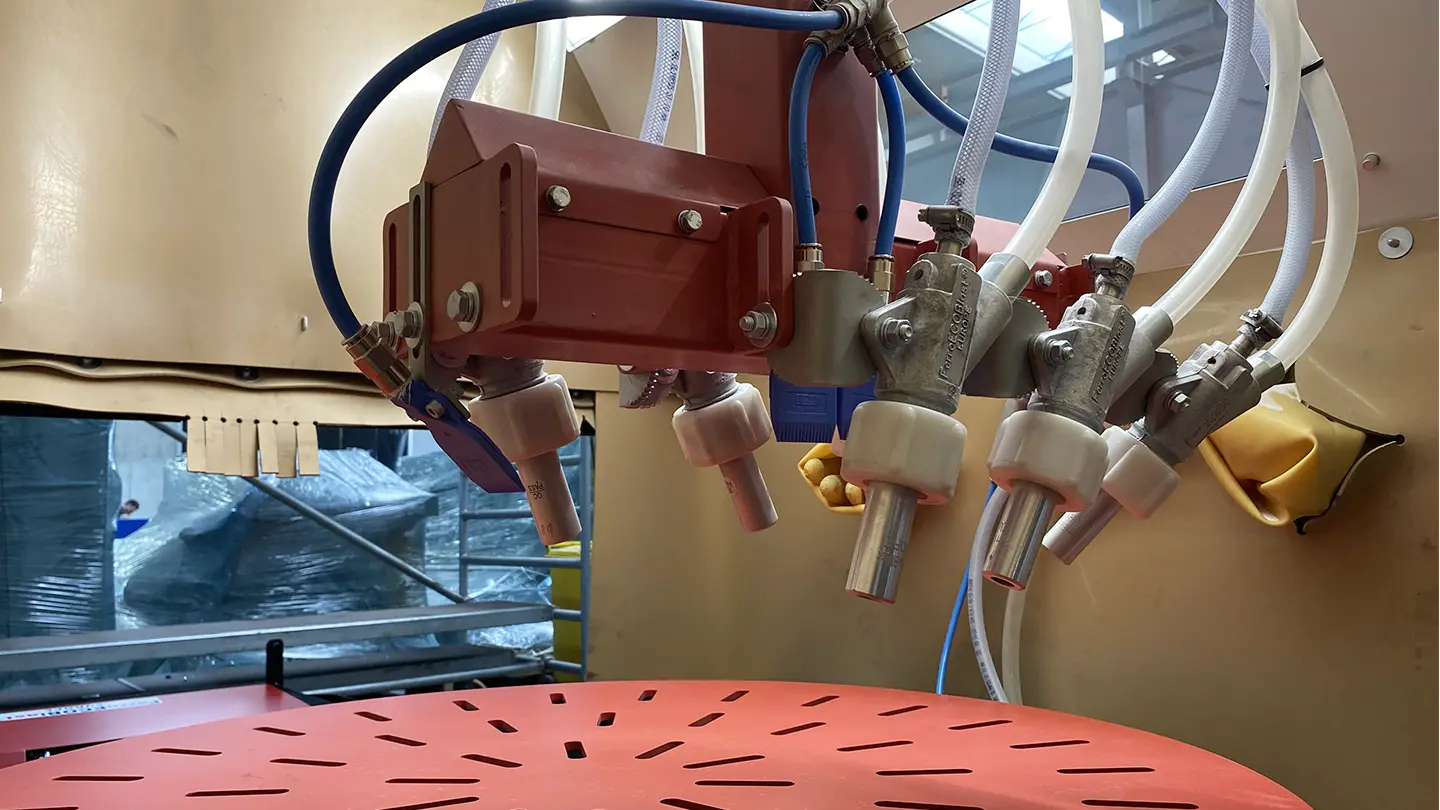

Multiple Blasting Nozzles
Six oscillating nozzles ensure coverage across all surfaces |
Manual Blast Nozzle for Precision
Offers manual control for detailed repairs and fine adjustments. |
Integrated Filter and Recycling Unit
Distinguishes reusable media from waste |
Advanced Control System
User-friendly interface for precise control over all machine parameters. |
The Blastomat 15-14 HD is tailored for industries requiring robust sandblasting solutions. Featuring two motorized turntables, each with a 1000kg capacity, this machine ensures continuous operations without downtime. The setup includes six oscillating blasting nozzles that cover a comprehensive blasting area, supported by an advanced filter-recycling unit that distinguishes and reuses good media, thereby optimizing media consumption and reducing waste. Most operational parameters are easily managed via the intuitive FerroSmartPanel.
Operational Benefits
- Workflows with automated dual turntables reduce cycle times and increase throughput.
- Customizable blasting options allow for precise surface treatment across a variety of industrial parts.
- "he robust build quality ensures durability and long-term reliability in demanding industrial environments.
Technical specifications - Blastomat
| Dimensions (L x W x H): 3400 x 4700 x 3700 mm* |
| Blasting Nozzles: 6x blasting nozzles (pressure or injection) |
| Turntable: 2x motorized turntable dia. 1000 mm |
| Load Capactiy: max. 1000 kg |
| Filter Unit: CENTRO 4/4-500 |
| Compressed air (estimated): 6 Nm³/min; 6,0 Bar |
| Power: 400 V / 50 Hz; ≈ 6,0 kW |
| Noise: ~ 80 dBA +- 2 dBA |
* Please note: This is a sample specification. Each machine is custom-made, so the data may vary based on specific requirements and purposes.
