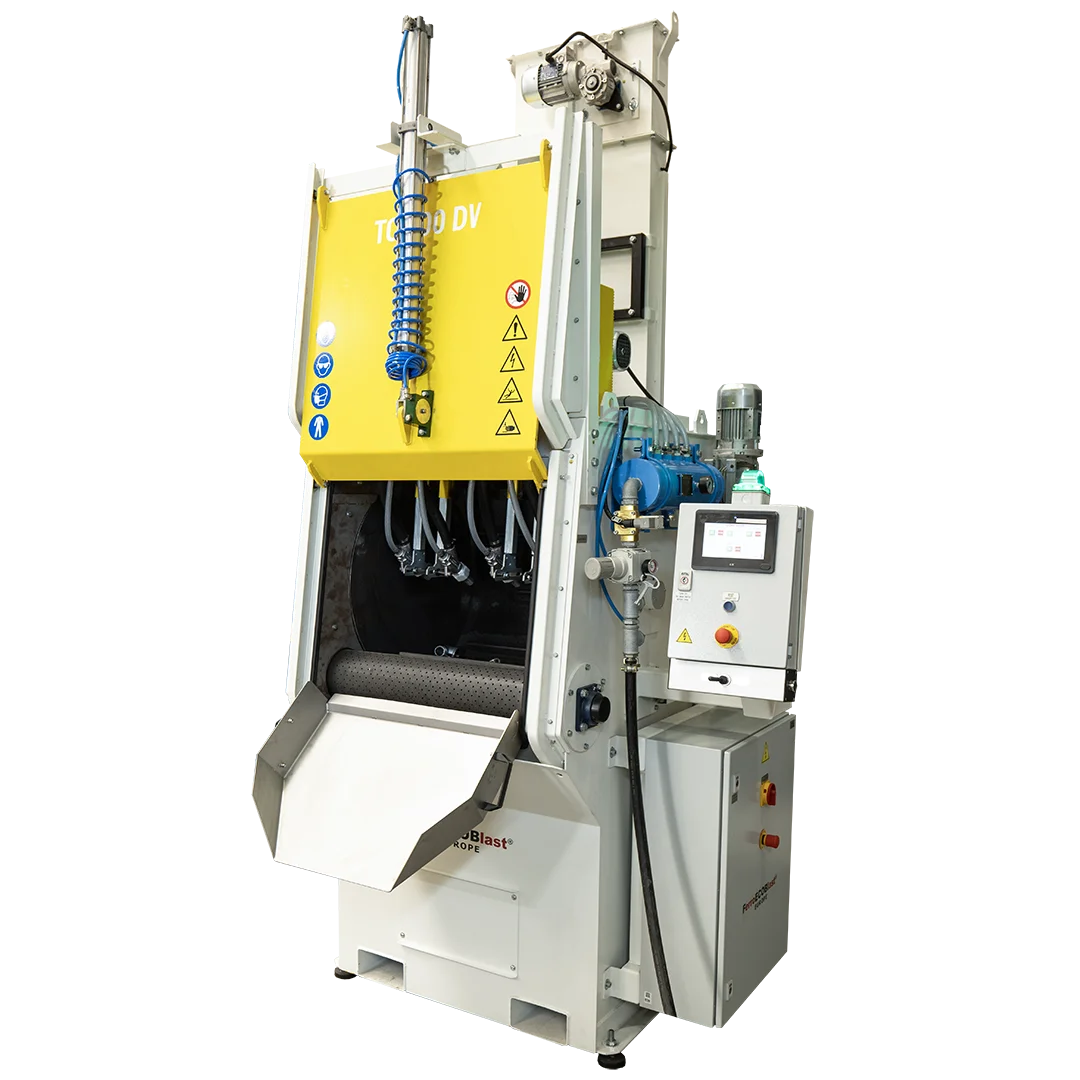

TC System - Automatic Tumble Belt
Sandblasting of small bulk components
Specially designed equipment for small pieces for such applications the compressed air operated tumble belt blast machines TC are the optimal solution.
 |
 |
|
|
 |
|
Customizable
Many optional accessories |
Precision blasting
With pressure blasting system |
Robust Construction
Made from steel |
Multiple Abrasive Options
Compatible with various abrasive media. |
Versatile Applications
Suitable for various cleaning tasks. |
When using corundum, glass beads and other materials that are not suitable for wheel blasting, Tumble Belt machine with air blasting system is the most preferred solution for components made of steel, stainless steel, titanium cast aluminium, brass, zinc alloy or other nonferrous metals where such abrasive materials are required.
- Heavy duty customized blasting machine with tumble belt system
- Injector (suction) or Pressure Blast system
- Oscillation for multiple blasting guns/nozzles
- Programable FerroSmart PLC Machine control
- Rubber belt with frequency inverter for speed control
- Pneumatic system for automatic door opening
|
Model
|
TC 60
|
TC 100
|
|
|
 |
 |
| Volume (liters) | 50 l | 100 l |
| Dimensions (W x L x H) | 720 mm x 1100 mm x 2900 mm | 1550 mm x 1060 mm x 3200 mm |
| Number of nozles | 3 POWERGUN nozzles | 4 POWERGUN nozzles |
| Air consumption | 1,2 - 2,5 Nm3/min | 4 - 5 Nm3/min |
| Power supply | 400 V; 50 Hz; 2,5 kW | 400 V; 50 Hz; 5 kW |
| Heavy Duty - HD version | Optional | Optional |
| Unloading tray | Optional | Optional |
| Automatic loading/unloading system | Optional | Optional |
| Atex version | Optional | Optional |
| Video presentation |
|
For more difficult Blasting conditions, we offer Tumble Belt machines in Heavy Duty - HD version, equipped with pressure blasting system and an elevator recycling system.
