Blast softline cabinets
Cabinets BLAST SOFTLINE are our standard blast cabinets made by professionals for professionals. BLAST SOFTLINE cabinets are ergonomically designed for day-to-day sand blasting in maintenance and production workshops.
Cabinets housing is made from powder painted sheet metal and has a wing door from the right side for easy loading. The tilt-out window is designed for tool-free glass change in minutes and equipped with fluorescent light for best visibility. Front openings for hand access are equipped with two layers of rubber sealing flaps. Galvanized steel gratings in the working area provide the best support for even heavier parts up to 300 kg. Blasting is foot operated and interrupted by a safety switch if the door is opened.
BLAST SOFTLINE cabinets can be equipped either with injector or pressure blasting system and optionally connected to dust collectors with or without cyclone for abrasive recycling.
Actual space requirement for a complete system depends on the equipment configuration, options and requested workflow. Care also about additional workspace for the operator and for maintenance access.
|
Blast 0,5 SL
|
Blast 1 SL
|

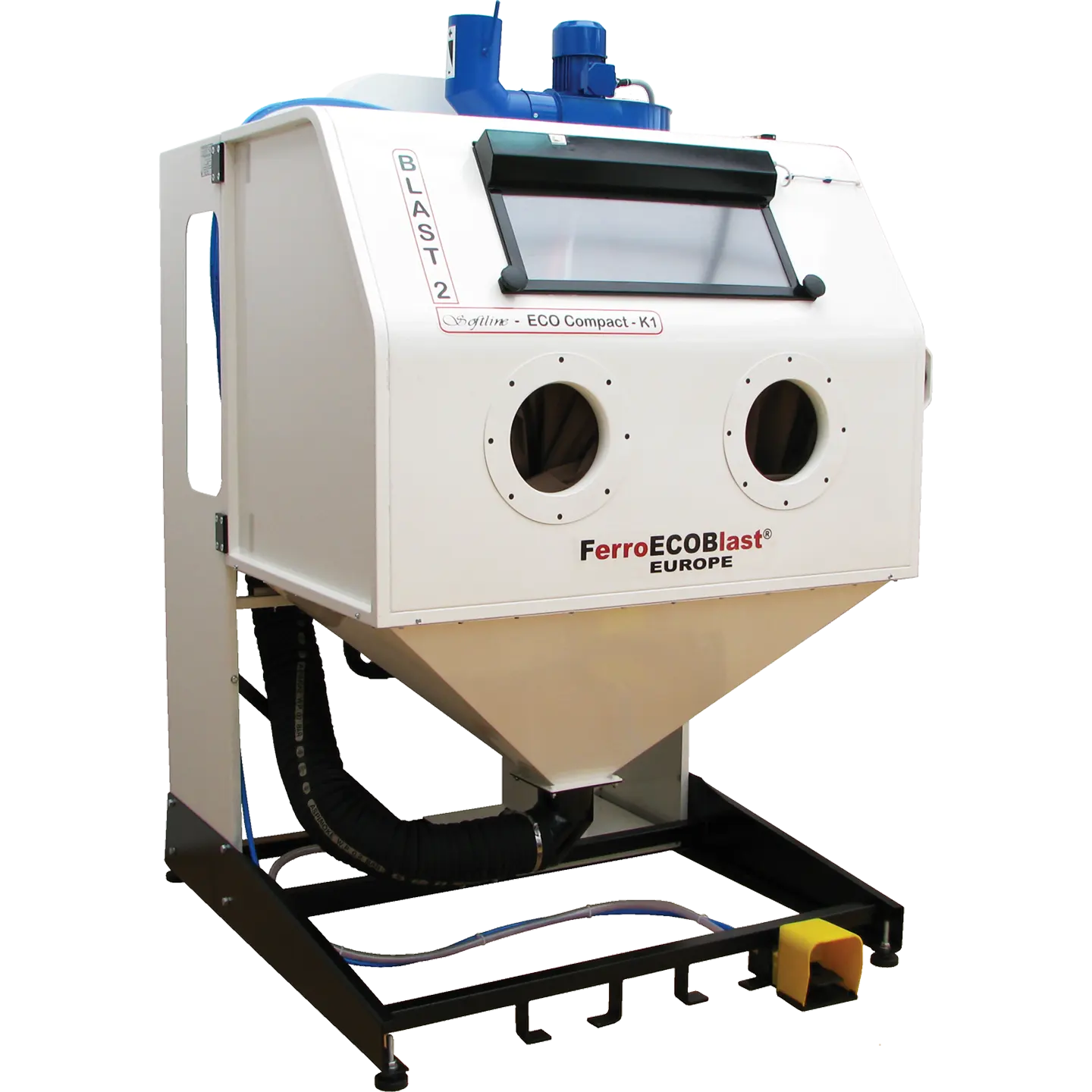

Blast 2 SL
|

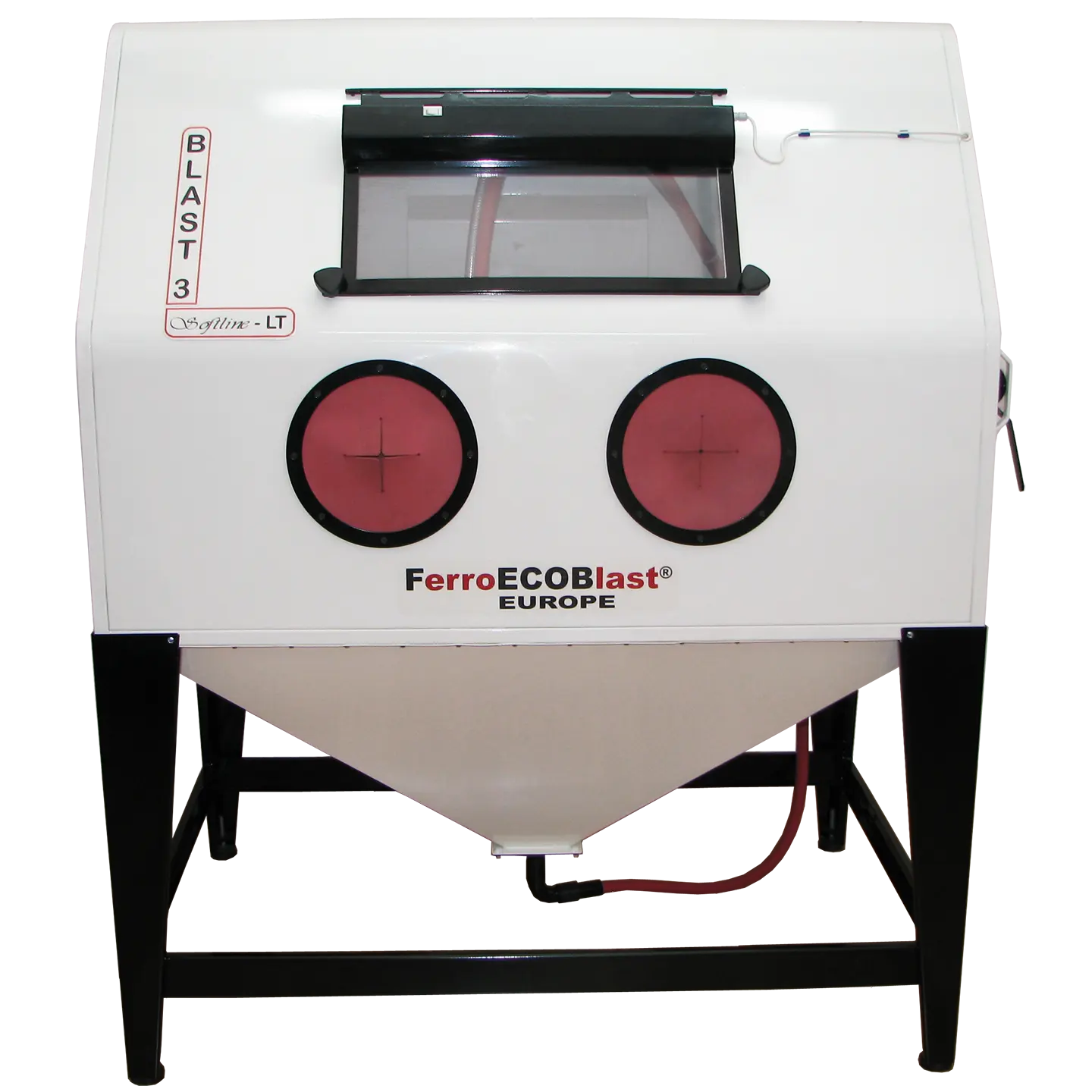

Blast 3 SL
|
Outside dimensions
(mm) |
600 x 550 x 800
|
850 x 600 x 1600
|
1200 x 800 x 1700
|
1500 x 1050 x 1740
|
Working area (mm)
|
550 x 500 x 500
|
800 x 550 x 750
|
1150 x 750 x 850
|
1450 x 1000 x 1000
|
Cabinet weight, empty
|
50 kg
|
100 kg
|
150 kg
|
190 kg
|
Max. workpiece weight
|
50 kg
|
250 kg
|
250 kg
|
250 kg
|
Electric connection:
|
|
230 V, 50 Hz
|
|
|
- 50 mm or 120 mm diameter suction connection
- Air pressure regulator with filter
- Blast guns type INJ 1 K, ANI or POWER GUN for injector blast system
- Wolfram-carbide or boron carbide nozzles
- Air pressure regulator with filter
- Blow-off (blowing) gun
- Blast gun holder
- Inside rubber lining
- Rubber/plastic blast gloves
- Metal ring for glove attachment
- Manual turntable VM
- 120 mm suction connection with PU lining
- left side door
- openings on the doors for longer work pieces
- carriage on rails in/out -500 kg capacity
- additional light on the cabinet's ceiling
Common applications:
- Remove rust, mill scale, heat treatment scale, and carbon buildup from metals
- Strip paint, powder coating, plating, and anodizing from parts for rework
- Eliminate burrs, parting lines, flashes, and other defects from castings and injection-molded parts
- Remove residual sand from castings
- Beautify steel, stainless steel, aluminum, brass and other metals with a uniform satin finish
- Etch artwork and apply lettering on glass, stone, plastics, metal and other materials
- Clean release agents and material buildup from molds
