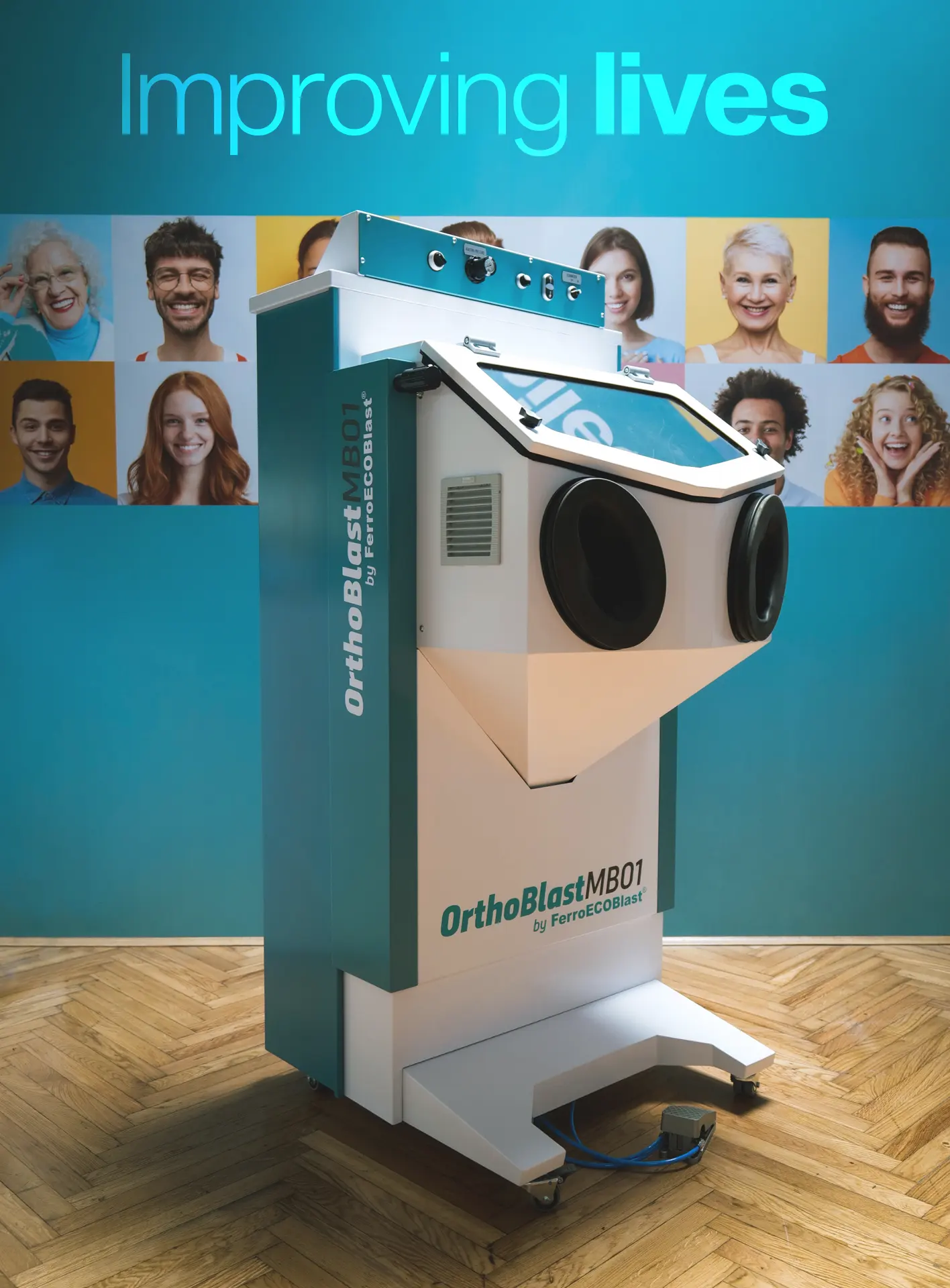

Manual implant blasting cabinet

OrthoBlast MB01

OrthoBlast MB01 Leaflet (pdf 1.16 MB) Download


  • Electronic height adjustment

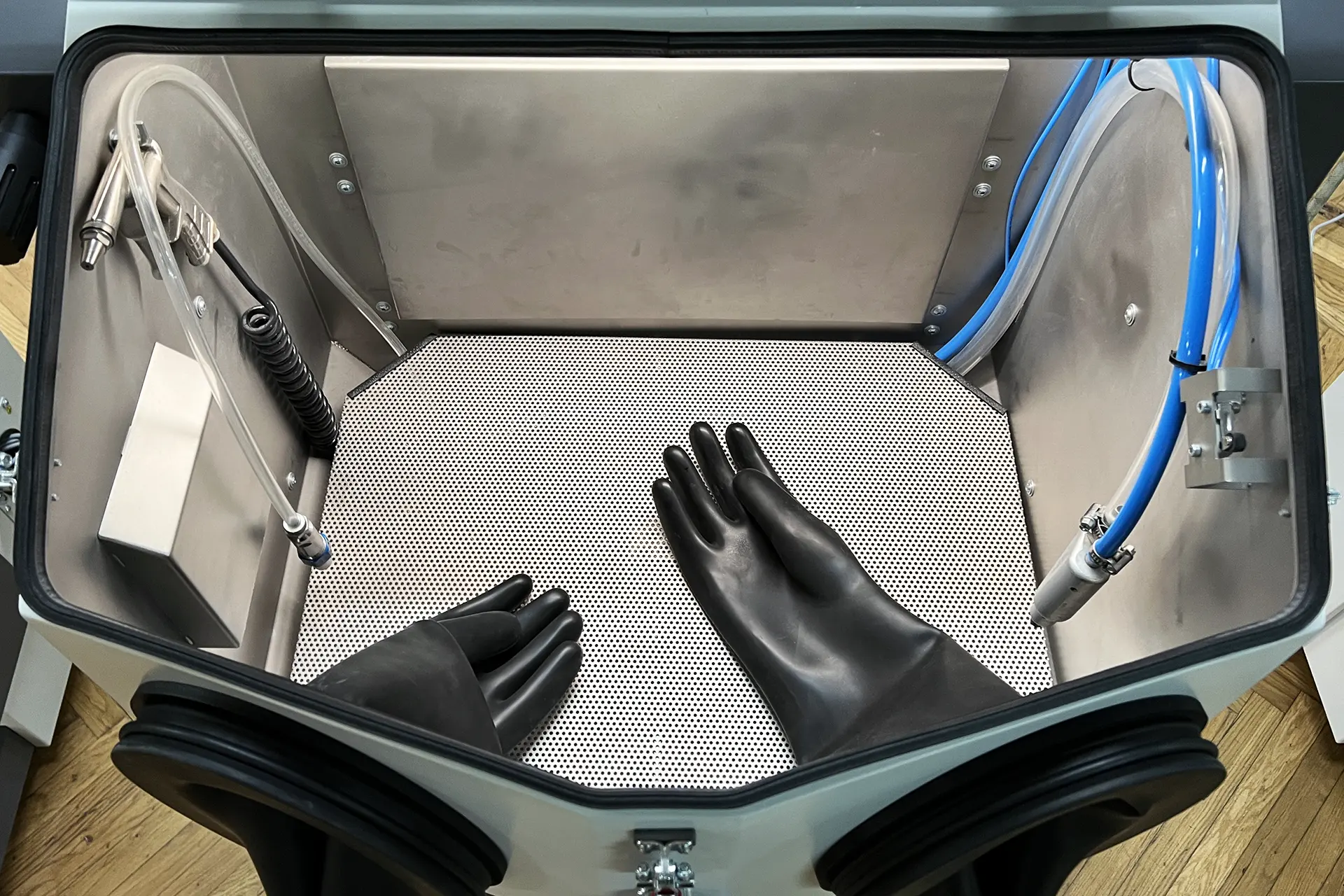

  • Large window for optimal view during blasting
  • Blow-off gun
  • Suction blasting system
    • Sx35 injection blasting gun
    • 1.5 liter abrasive reservoir with dosing valve
    • Automatic refill of suction blasting system
  • Pressure blasting system
    • Integrated AddiMiniBlast pressure blasting system
    • Ø 2mm pressure blasting nozzle
    • Automatic refill of pressure blasting system
  • Manual blasting pressure regulator
  • Manual abrasive flow regulator
  • Foot pedal activated blasting
  • Media recycling system
  • Heavy-duty replaceable gloves
  • Door safety switch
  • Stainless steel construction
  • Compatible with all types of abrasives

Technical Specifications:

  • Model: OrthoBlast MB01
  • Dimensions (L x W x H): 800mm x 800mm x 1700mm
  • Workspace size (L x W x H): 650mm x 500mm x 500mm
  • Load capacity: 30kg
  • Height adjustment: 200mm
  • Compressed air (min - max): 1 bar / 14,5 PSI - 8 bar / 116 PSI
  • Air Consumption: 600l/min
  • Power Supply: 110/230VAC 60/50Hz
