IBL Dry Ice Blasting Systems


Compact Design Ideal for cleaning small parts and surfaces	Low Air Requirements Operates with standard plant air supply (7 bar, 500-3000 l/min)	Cost-Effective Affordable and efficient for various cleaning tasks.	High-Quality Construction Stainless steel chassis and cover	Versatile Applications Suitable for multiple industries and cleaning needs

The IBL Series Dry Ice Blasting Systems are designed to provide efficient and effective cleaning solutions for a variety of industrial applications. Utilizing dry ice blasting technology, these systems offer a non-abrasive method of removing contaminants such as dirt, oil, grease, dust, and fingerprints from surfaces without damaging the underlying material.

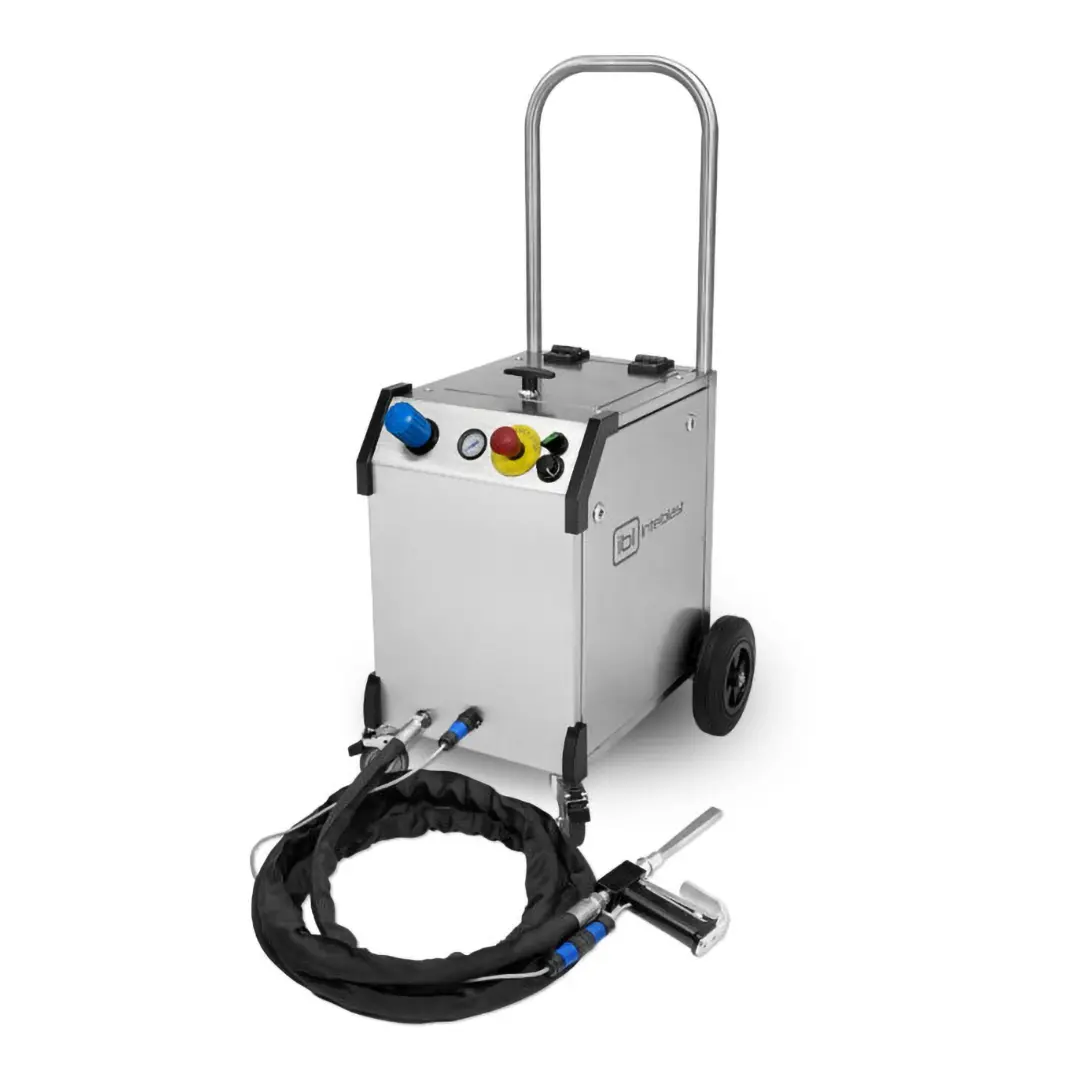

The IBLmini is perfect for companies needing to clean small parts and surfaces without the need for high air flow compressors. It operates efficiently with standard plant air supply, making it a cost-effective choice for daily maintenance and occasional cleaning tasks.

The IBL2500 is an excellent mid-range option, offering a balance between compact design and powerful performance. It is suitable for a wide range of cleaning applications, including those requiring factory air cleaning with 3000-7000 liters of air per minute at 5-7 bar.

The IBL3000 features a narrow design that allows it to be easily maneuvered in tight spaces and between machines in production environments. Despite its compact width, it has a large hopper that holds more than 25 kg of dry ice, enabling extended operation before needing to refill. This makes it ideal for continuous and demanding cleaning tasks.

The IBL Series serves a wide range of industries, all benefiting from environmentally friendly and non-abrasive cleaning with dry ice:

Aerospace
Automotive
Contract Cleaning
Electrical
Fire Restoration
Food and Beverage
Foundry
General Maintenance
Historical Restoration
Medical Device Manufacturing
Mold Remediation
Packaging
Plastics
Power Generation
Printing
Rubber
Weld Line Cleaning
Wood

Models	IBLmini	IBL2500	IBL3000
Nozzles included	4mm - 1.5m³/min; 5 mm - 2.5m³/min	4mm - 1.5m³/min	1 short nozzle with 3 inserts (5-10 mm)
Hose standard	5 m (1/2”) technical rubber without silicone	7 m (3/4”) technical rubber without silicone	7 m (3/4”) technical rubber without silicone
Dimensions (L x W x H)	480 mm x 550 mm x 610/895 mm	500 mm x 700 mm x 900 mm	400 mm x 780 mm x 1110 mm
Weight	39 kg	81 kg	95 kg
Hopper size	8 kg	23 kg	25 kg
Dry ice consumption	10-30 kg/h	25-90 kg/h	25-90 kg/h
Pressure	2-12 bar	2-12 bar	2-16 bar
Pressure regulator	Festo 1/2”	Festo 3/4”	Festo 1”
Air consumption (min-max)	1.000 l/min - 3.600 l/min (Ideal 2.000 l/min)	2.000 l/min - 15.000 l/min (Ideal 5.000 l/min)	2.000 l/min - 25.000 l/min (Ideal 5.000 l/min)
