DentalBlast 420 - Sandblasting for Dental Implants
Precision Automation for Dental Industry Professionals
Experience precision and control with the DentalBlast 420, tailored for dental clinics and labs requiring efficient and precise surface treatment of dental implants. This machine combines high-performance features in a compact form, perfect for smaller batch operations and specific implant types.
 |
 |
 |
 |
 |
|
Precision Manipulator
3-axis manipulator with rotational control for exact positioning |
Automated Blasting System
Dual nozzle system for uniform implant surface treatment |
Versatile Media Support
Compatible with a variety of media types |
Integrated Media Recycling
Incorporates a cyclone unit for effective media recovery and reuse |
Advanced Control System
Intuitive PLC control with touchscreen |
The DentalBlast 420 is crafted to offer superior handling and precise blasting for dental implants. With its dedicated tray system, dual nozzle setup, and a three-axis manipulator, this machine ensures meticulous surface preparation in a compact and efficient design. The manipulator is equipped with a rotation motor and pneumatic gripper for exact implant placement, enhancing the consistency and quality of the blasting process.
Operational Benefits
- Ensures uniform surface treatment with dual adjustable nozzles for consistent implant quality.
- Processes up to 420 implants per cycle, maximizing throughput in busy dental labs.
- Compact footprint ideal for smaller labs, integrating seamlessly into limited spaces.
Equipped with MINIBLAST pressure or injection blasting system, with two high-performance nozzles that provide targeted and uniform abrasive coverage. Each nozzle’s position and angle can be manually adjusted to accommodate various implant shapes and sizes. The dual-nozzle setup enhances the machine's ability to evenly treat every implant surface, crucial for achieving optimal adhesion and long-term implant success.

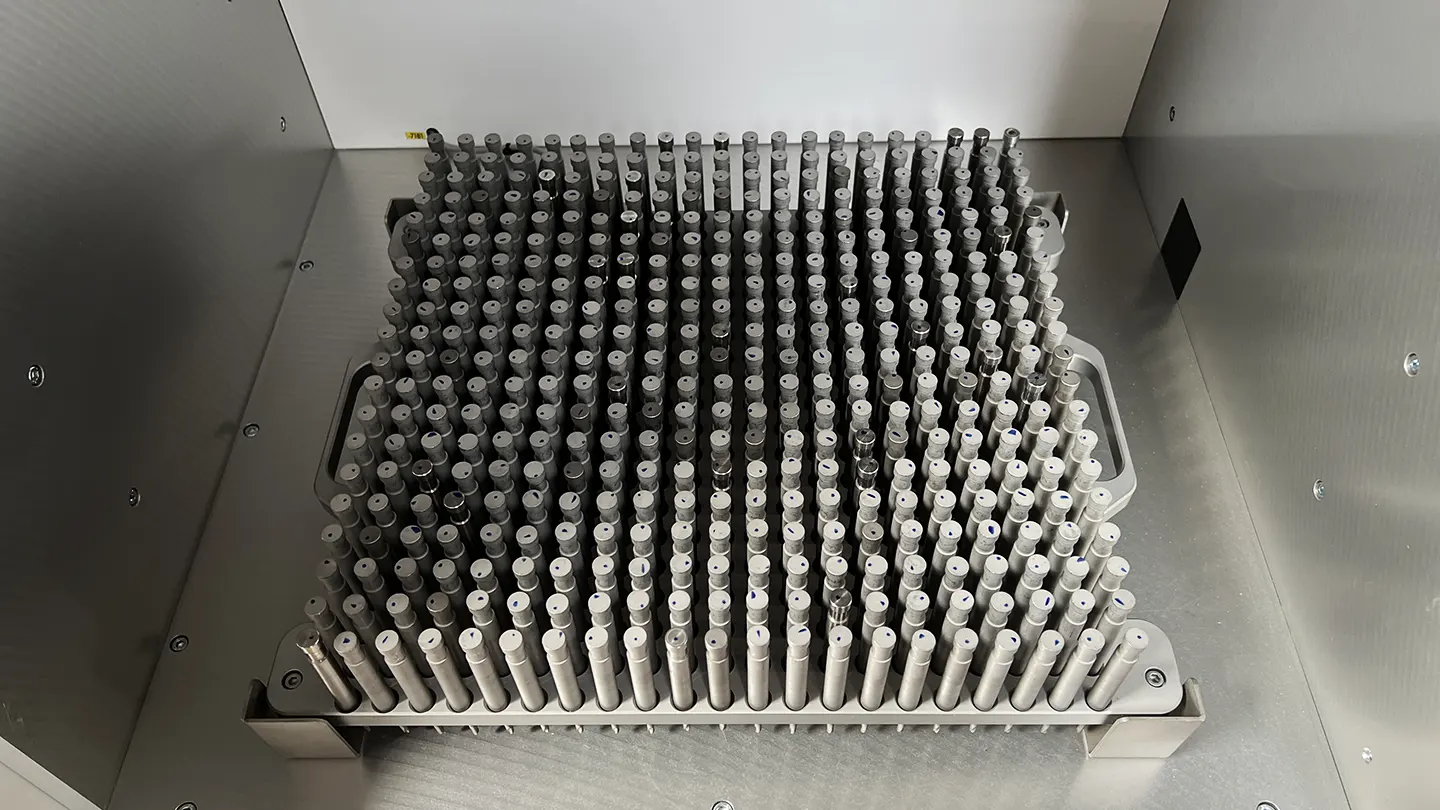

Designed for efficiency and precision in the dental industry, integrating a sandblasting machine with a high-capacity tray system. This system allows for the automated loading and unloading of up to 420 dental implants per cycle. The design is focused on ensuring consistent treatment quality and reducing operational time, making it ideal for high-volume dental implant manufacturers who require precise surface modifications.
Includes an automatic abrasive fill-in system that ensures a continuous supply of media, such as Aluminium Oxide or Ceramic, according to customer specifications. The integrated media recycling system includes a mini-cyclone that efficiently separates reusable media from waste. This feature significantly reduces media consumption and environmental impact while maintaining the blasting quality necessary for dental applications.
Equipped with a 3-axis manipulator, the machine offers precise control over the handling and positioning of dental implants. The manipulator is fitted with a rotation motor and a pneumatic gripper that delicately handles each implant. This system allows for exact implant placement on the satellite turntable, ensuring that each implant is exposed to the blasting media uniformly, which is crucial for consistent treatment outcomes.
Technical specifications
| Dimensions (L x W x H) 1140mm x 1040mm x 1850mm |
| Capacity 120 implants/hour |
| Lenght of Implants: 4 - 65 mm |
| Air Consumption 0.8 - 1.5m³/min; 6 bar |
| Power 3 x 230/400V, 3/N/PE 50/60Hz 2,5kW |
| Weight 406 kg |
Video presentation:
