Selecting the Right Shot Peening Machine
Choosing the right shot peening machine is crucial for enhancing the surface strength and durability of metal components. Shot peening machines are essential in industries such as aerospace, automotive, and manufacturing, where high-stress components require enhanced fatigue life and resistance to stress corrosion cracking. This guide will help you navigate through different types of shot peening machines, focusing on their unique capabilities and applications.
Understanding Shot Peening
Shot peening is a cold working process that bombards the surface of a component with small spherical media called shots. This process induces compressive stresses on the surface, improving fatigue resistance and extending the lifespan of the part. It is widely used to enhance the strength of critical components.
Key Features to Consider
When selecting a shot peening machine, consider the following key features:
- Nozzle Configuration: Multiple nozzles can cover different angles and surfaces efficiently.
- Process Control: Robust control systems like PLC (Programmable Logic Controller) and SCADA (Supervisory Control and Data Acquisition) ensure precise process management.
- Media Management: Effective media reclaim systems and dust collectors maintain a clean and efficient peening environment.
- Automation: Automated systems with robotic manipulators enhance precision and repeatability.
ASP System
The ASP system offers a different approach to shot peening with a focus on precision and efficiency for smaller, more intricate parts. This system features a compact design with a motor-driven swivel turntable and two rotational satellites. It is equipped with a high-efficiency media reclaim system and precise media flow regulation, making it ideal for detailed peening tasks.
The ASP system includes an automatic shot peening cabinet with robust construction, sound-absorbing materials, and anti-abrasive lining. The pressure peening system uses two nozzles with precise air pressure and media flow control. The motor-driven turntable, with adjustable speed and precise positioning, can handle workpieces up to 500 kg. The FerroSmartPanel interface facilitates easy operation and process monitoring.
This system is perfect for automotive parts like gear wheels and clutch disks, aerospace components like small turbine blades, and general manufacturing components that require precise and uniform peening.
The following procedure is drying and neutralisation of wastewater, which is another whole science with large start-up and maintenance cost.
ARSP System

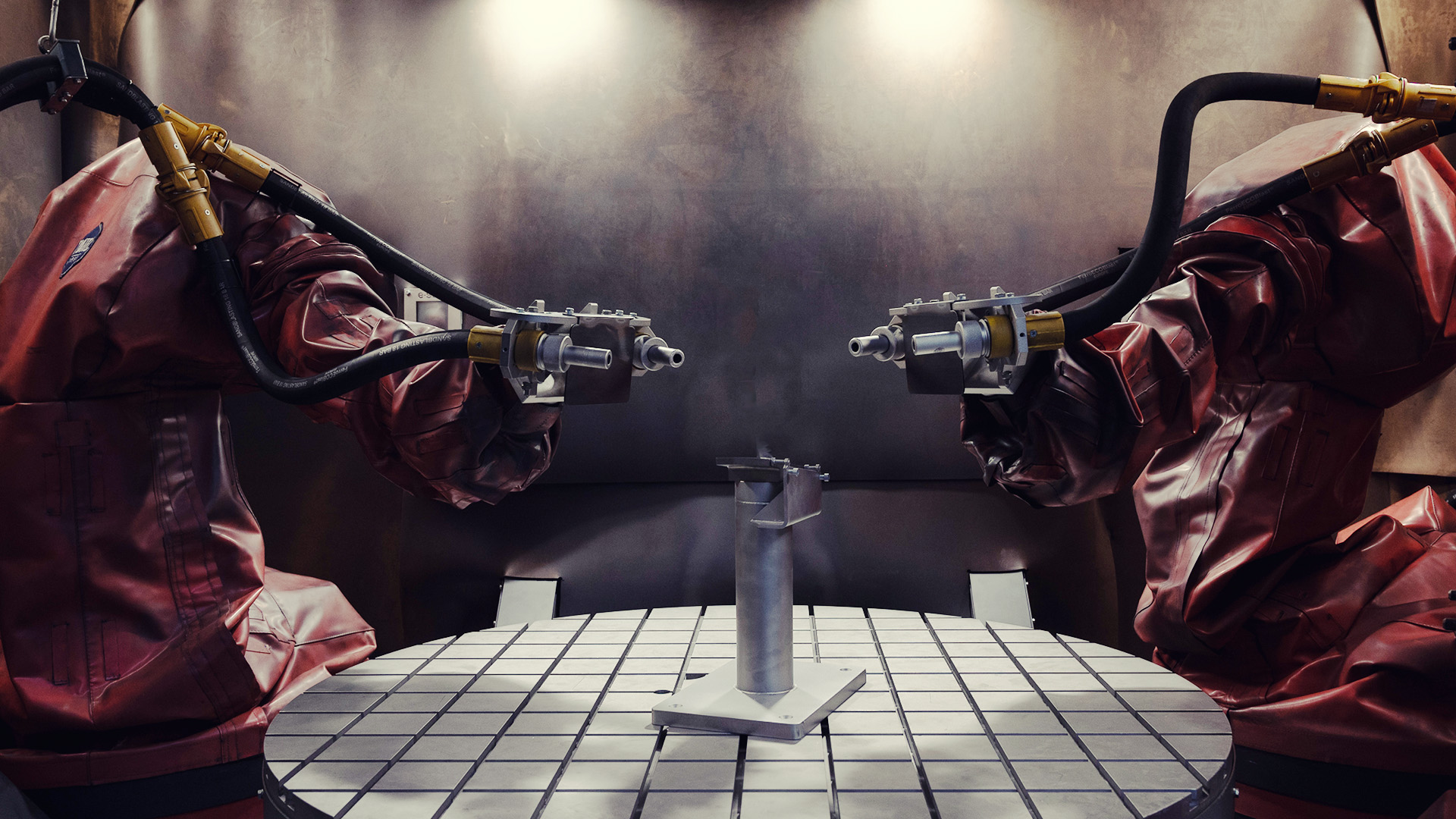

The ARSP system is designed for the robust requirements of landing gear and fan blades, providing highly controlled and repeatable shot peening. It is a fully automated, robotized shot peening machine capable of handling large components with complex geometries. The system features a 6-axis robotic manipulator and additional internal peening capabilities.
With the ARSP 1200 ECO system, the nozzle configuration includes two regular nozzles and a rotary lance for internal peening. Advanced control through the FerroSmartPanel and robotic controller ensures precise and repeatable results. The system accommodates components up to 2500mm in length and 1300mm in width, using steel shot media (S230, S280, S330, S110). The comprehensive media recycle and separation system ensures continuous operation and minimal downtime.
Ideal applications include aerospace components such as landing gears and fan blades, large automotive drive shafts, and heavy machinery components requiring deep compressive stresses for enhanced durability.

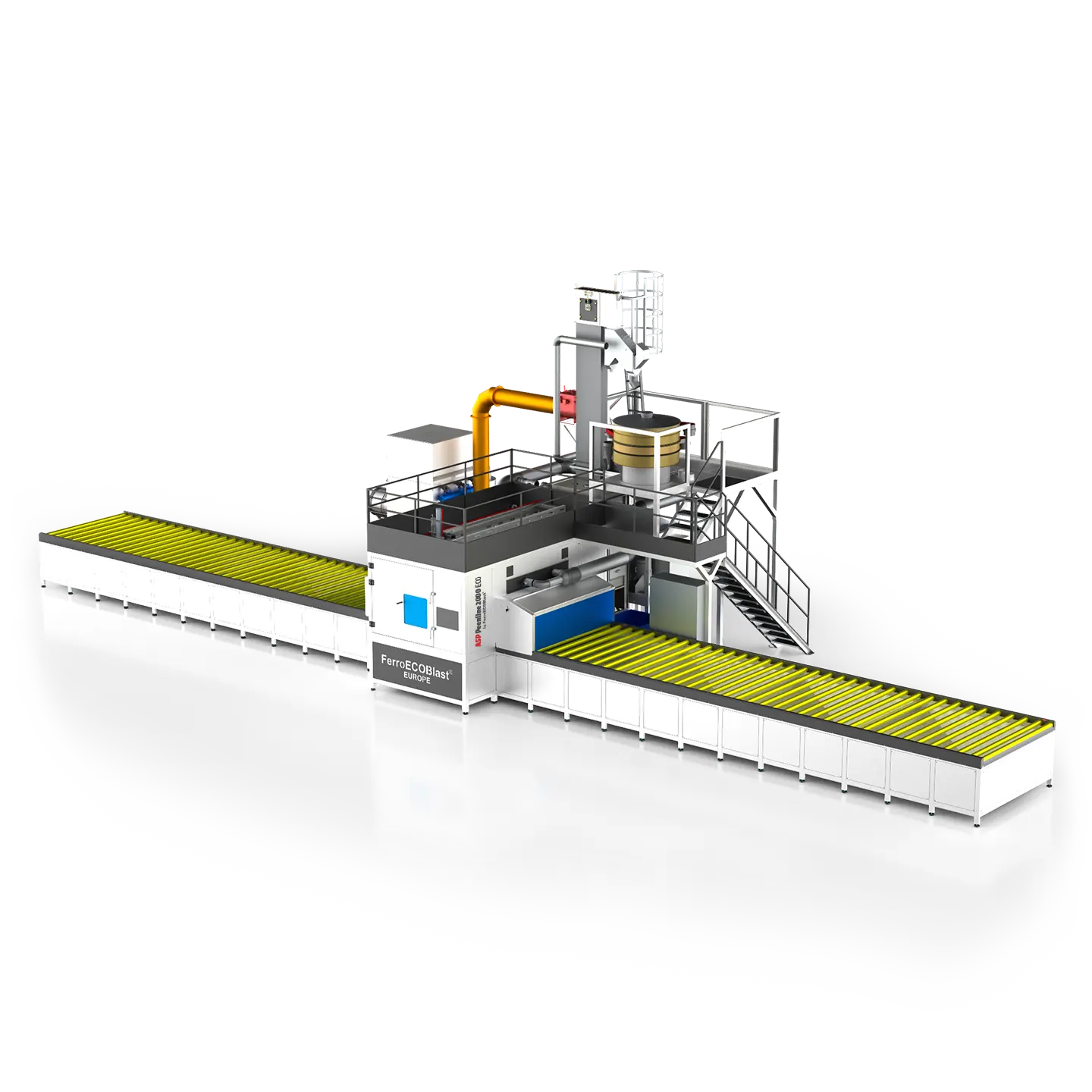

ASP Peenline Systems
The ASP Peenline Systems are designed for high-efficiency shot peening with controlled and repeatable results. These systems provide controlled and repeatable shot peening of various metal components with high-efficiency cut wire media. They feature multiple adjustable nozzles that target workpieces from different angles, ensuring comprehensive coverage. The through-feed system with a heavy-duty transport line ensures efficient manipulation of workpieces, allowing for repositioning after one side has been processed.
Technically, the ASP Peenline Systems come equipped with automatic nozzle manipulation. Four nozzles positioned at a 45° angle ensure optimal surface coverage. The process control systems include MAGNAVALVES for precise media mass flow control and a SCADA system for overall process management. Additionally, the double pressure vessel ensures continuous operation by providing constant refilling and uninterrupted peening.
These systems are suitable for peening larger structural parts in industries such as automotive, aerospace, and manufacturing. Typical components include axle shafts, gear wheels, turbine blades, and more.
CSP System
The CSP system is designed specifically for peening jet engine blades and other intricate aerospace components. This system uses a continuous shot peening process with glass beads, providing precise control over peening intensity and coverage. The CSP system is equipped with advanced media flow regulation and a high-efficiency dust filtration unit.
The automatic peening cabinet features a motor-driven transport turntable and horizontal nozzle manipulation. Media flow regulation is achieved using MagnaValve magnetic valves for precise media dosing, while the CENTRO dust filtration unit with an automatic cleaning system maintains a clean operational environment. Control systems include integrated PLC and SCADA for real-time monitoring and control.
This system is ideal for aerospace applications, including turbine blades, compressor blades, and other intricate components requiring precise peening.
Selecting the Right Machine
When choosing the right shot peening machine, consider your specific application requirements, including the size and complexity of the components, desired process precision, and production volume. Evaluate the machine’s technical capabilities, automation features, and overall cost-effectiveness.
- For Large Structural Parts: The ASP Peenline Systems are ideal due to their multi-nozzle configuration and through-feed system.
- For Precision Applications: The ARSP 1200 ECO System, with its robotic manipulators and precise control features, is suitable for components like landing gears and fan blades.
- For Intricate Aerospace Components: The CSP 1300 ROT system provides the precision and control needed for jet engine blades and other high-precision parts.
Conclusion
Investing in the right shot peening machine can significantly enhance the surface strength and durability of your components. By understanding the features and benefits of different machines, you can select the best solution to meet your specific needs, ensuring high-quality results and improved performance. Whether you need a versatile system for large parts or a precise machine for critical aerospace components, choosing the right shot peening technology is essential for achieving optimal results.
