Two-Bag filter unit

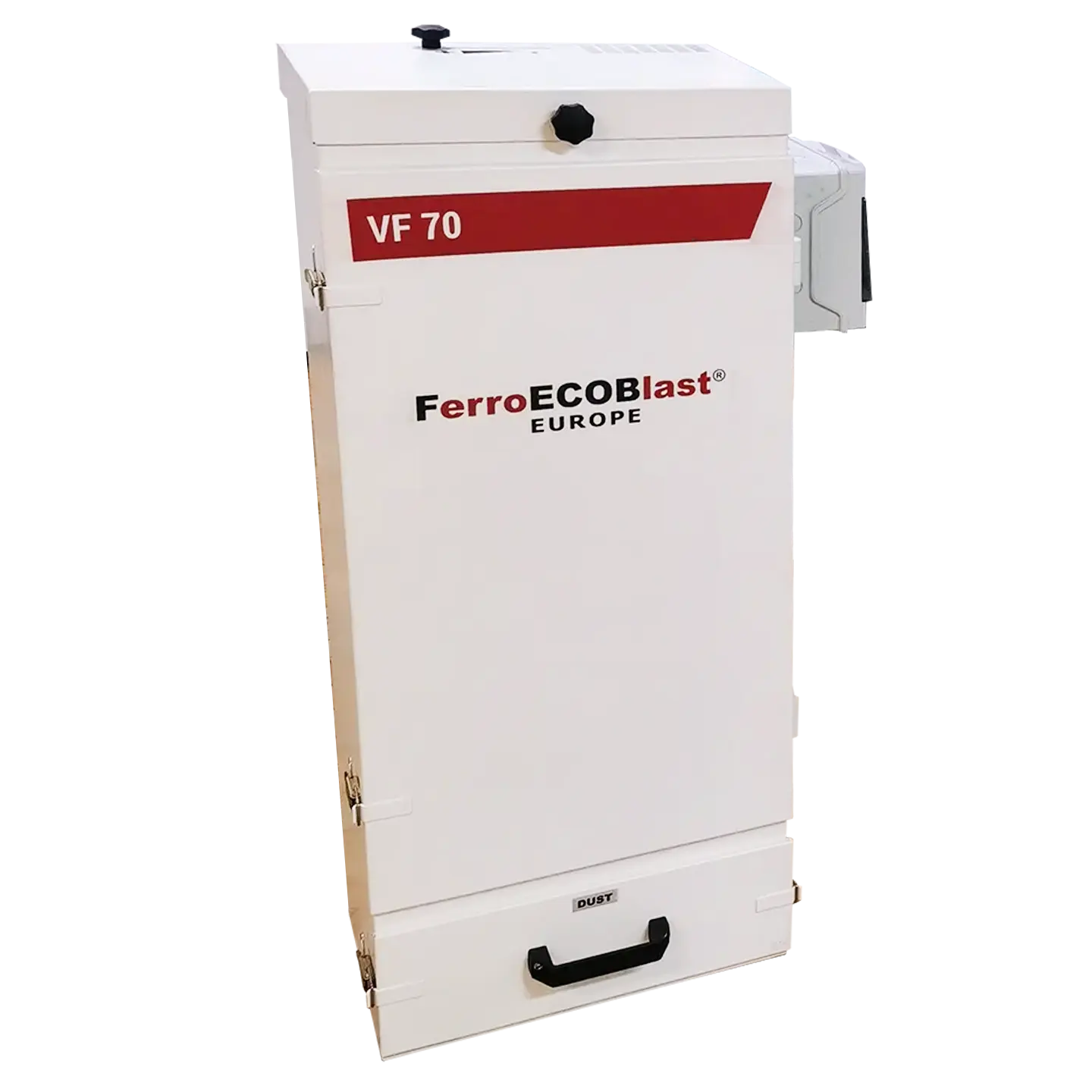

A combination with the professional Two-Bag filter unit VF-70 is a very effective low-cost solution for continuous work, without recycling of sandblasting media.

Filter unit VF-70 consist of:

  • Metal main frame
  • One or three phase electromotor with fan
  • Electro box with safety switch
  • Two filter bags
  • Manual cleaning system
  • Dust container
  • Airflow regulator

Power supply:

  • one phase motor 240 V/50Hz, 0,37 kW
  • three phase motor 400V/50Hz

Dimension: 445 x 315 x 1040 mm
Suction connection: Ø 120 mm
Airflow: 700m3/h
Weight: 52 kg

Air-flow with dust particles comes through intake into the filter unit. Bigger particles fall into the dust container, while air-flow with very fine dust goes through filter bags. Only clean air is pushed out through the top. Filter bags are cleaned by pressing the manual knob on the top.
